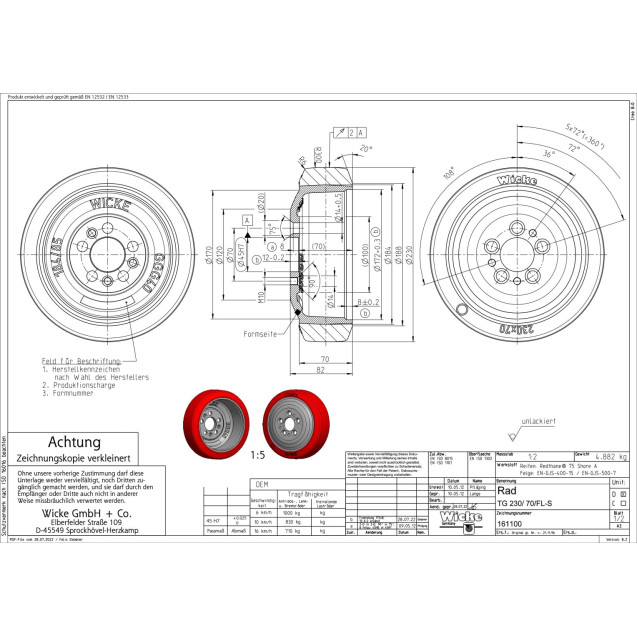

161100 TG 230/ 70-184/FL-S AS:5/ 70/45H7 D:14 3xM10
- Brands Wicke
- SKU CODE: 161100
- Availability: Out Of Stock
Wicke Drive Wheel 161100 TG 230/ 70-184/FL-S,
Redthane® 75 Shore A ,Wheels of the series TG are made of a high quality grey cast iron wheel centre with a vulcanised soft polyurethane Wicke Redthane® 75° shore A tyre. The Redthane® tyre is bonded to the wheel centre with a special bonding agent. The tyre is abrasion resistant with low starting and rolling resistance, very good traction features and is extremely quiet running. The tyre is cut proof and has good tear strength.
Redthane® 75° Shore A is a high-quality red polyurethane (MDI) with rubber-elastic properties, excellent traction values and best ergonomics. The favorable combinations of chemical and physical properties offer the best results for use in areas with high demands on loads, distances and speeds.
Bore Diameter 45mm,
1000 kg load capacity
Fits
Jungheinrich 51556575
| Product Details | |
| Wheel Diameter (mm) | 230 |
| Tread Width (mm) | 70 |
| Load Capacity (kg) | 1000 |
| Tyre Material | Redthane® 75 Shore A |
| PCD (mm) | 70 |
| Clamp Length (mm) | 5 |
| Rim Diameter (mm) | 184 |
| Hub Width (mm) | 45 |
| Weight (kg) | 7.3 |
Tags: Wicke 161100 Drive Wheel 230x70, Jungheinrich 51556575, 50019779, 50020215, 50023644, 50460101, 63210590, Redthane
