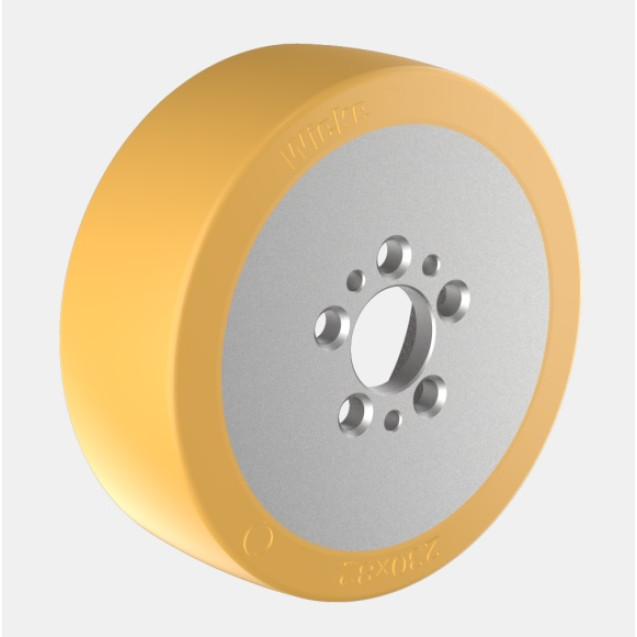

228099 Drive Wheel VG 230/ 82-188/FL-S AS:5/ 70/45H8 D:14 +3xM10 - 75
- Brands Wicke
- SKU CODE: 228099
- Availability: 37
Unpainted AS:5/ 70/45H8 D:14 +3xM10 - 75
1600 kg capacity
manufacturers part number 50460100 - 63215600 - 51048458
Manufacturer Jungheinrich
Manufacturers Model ERE225 - ECE320 SH - ECE225 - ECE316 - ECE NEU - ERC 220/225 - ERE120 - EZS130
NDIIThane® is a self-developed high-performance elastomer (NDI) for dynamic load based on the raw material Naphthylendiisocyanat. The most important factor is a high-strength bond to the metal that is only possible to achieve during the hot cast production process. NDIIThane® Wheels are 2,5 times higher resilient than solid elastic tires and have the best mechanical features for abrasion, elasticity, tear strength and compression set which results in long operating times and low maintenance costs. Option: hydrolytic resistance. All in the catalogue indicated load capacities refer to a speed of 4 km/h for indoors. Maximum loads for higher speed can be advised on demand
Part number replaces 157132
| Product Details | |
| Wheel Diameter (mm) | 230 |
| Tread Width (mm) | 82 |
| Load Capacity (kg) | 1600 |
| Tyre Material | Wicke Ndithane 92 Shore |
| Number of Stud Holes | 5 |
| Stud Hole Diameter (mm) | 14 |
| PCD (mm) | |
| Rim Diameter (mm) | 185 |
| Bore Diameter (mm) | 45 |
| Fits Manufacturer | Jungheinrich |
| Type | Drive |
