KS LG 1/125/45K

  • Brands Wicke
  • SKU CODE: 183437
  • Availability: Out Of Stock

  • We don't have this item in stock but we can speak to the manufacturers and check availability. If parts are available we may be able to get them sent out directly.

P.O.A

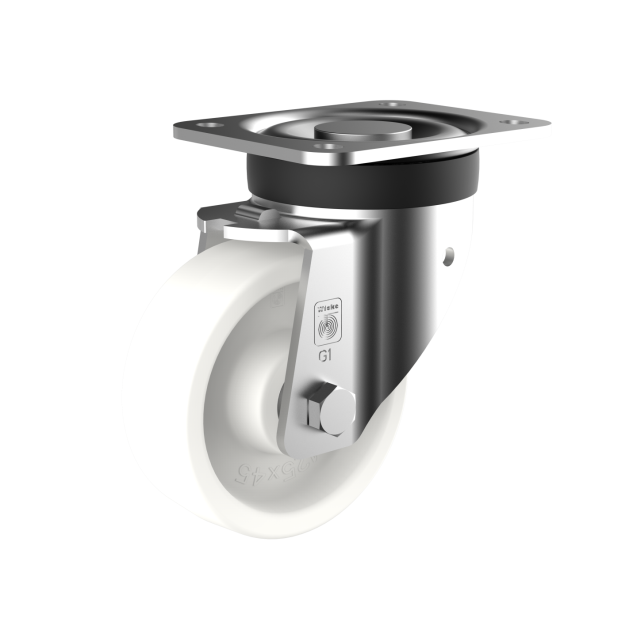

Steel swivel forks with top plate. In the swivel head, there is a hardened and sealed double ball race with greased ball race channels and sealing as a protection against dust and dirt. The top plate with four bolt holes is directly bolted to the yoke and secured to ensure smooth movement with minimal tolerances in the swivel head. The wheels of the series KS are heavy duty die casted wheels made of high quality Polyamide PA 6 in natural colour (white). The wheels are available with plain bearing or with ball bearing.
Product Details
Wheel Diameter (mm) 125
Tread Width (mm) 45
Load Capacity (kg) 600
Wheel Material Heavy duty die casted wheels made of high quality Polyamide
Bearing Ball Bearing
Overall Height (mm) 170
Bolt Hole Diameter (mm) 105x75/80
Diameter Mounting Hole (mm) 11
Offset 52
Base Plate Dimentions 135x110
Bolt Hole Spacing 105x75/80
Weight (kg) 1.5
Tyres Polyamid PA 6
Type Fixed Castor
