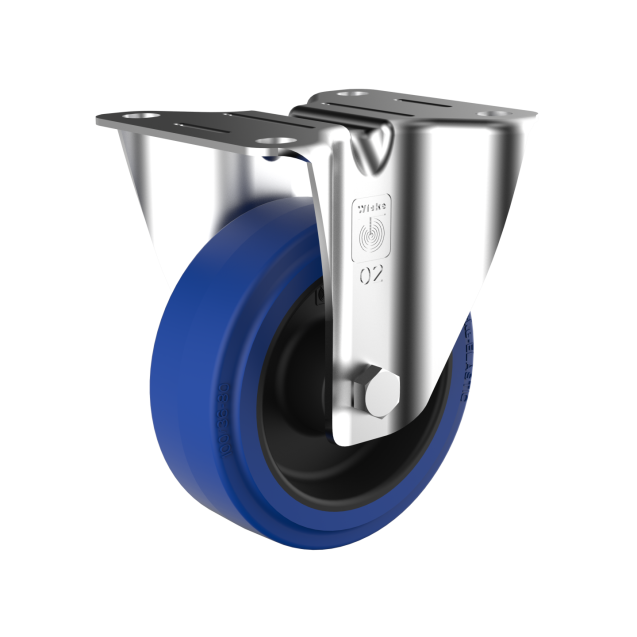

Fixed Castor BN B 02/100/36R

  • Brands Wicke
  • SKU CODE: 173102
  • Availability: 5

P.O.A

Steel swivel forks with top plate. Swivel head with double ball race which is sealed to protect against dust and dirt. The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series L is suitable for manually moved loads up to 400 kg. Wheel of the series BN are made of a one-piece Polyamide wheel center with a directly vulcanized high quality blue Wicke - ELASTIC® rubber tyre with 63 Shore A hardness. The Wheel are available with roller bearing.
Product Details
Wheel Diameter (mm) 100
Tread Width (mm) 36
Load Capacity (kg) 180
Tyre Material Blue Wicke - Elastic Rubber
Wheel Material One-piece Polyamide
Bearing Needle roller bearing
Overall Height (mm) 125
Diameter Mounting Hole (mm) 9
Offset -
Base Plate Dimentions 102x87
Bolt Hole Spacing 80/76x60
Weight (kg) 0.868
Tyres Wicke-Elastic® blau
Type Fixed Castor
