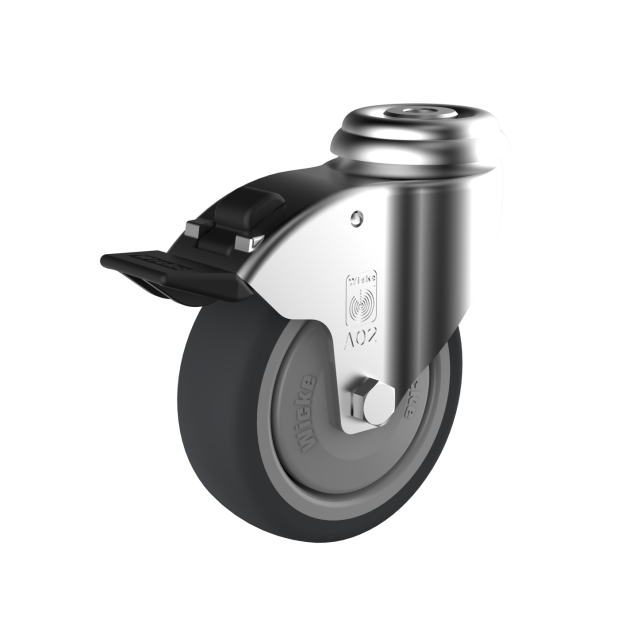

Swivel Castor With Bolt Hole and Brake EP RAR 02/100/32K-FSTF-FA

  • Brands Wicke
  • SKU CODE: 172119
  • Availability: 3

P.O.A

Steel swivel forks with single bolt hole. Swivel head with double ball race. The top plate with single bolt hole is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series RAR is suitable for manually moved loads up to 100 kg. EP series Wheel have a dark grey running surface in thermoplastic elastomer (TPE) in appr. 85 Shore A, which is directly injected onto a light grey Polypropylene rim. The Wheel are available with plain bearing or with ball bearing.
Product Details
Wheel Diameter (mm) 100
Tread Width (mm) 32
Load Capacity (kg) 100
Tyre Material Dark grey running surface in thermoplastic elastomer (TPE)
Wheel Material Polypropylene
Clamp Length (mm) 10.5
Bearing Ball Bearing
Overall Height (mm) 134
Plate Diameter (mm) 58
Bolt Hole Diameter (mm) 10
Front And Back Stop Frontstop
Offset 40
Weight (kg) 0.829
Tyres TPE
Type Swivel castor bolt hole with beak (FSTF)
