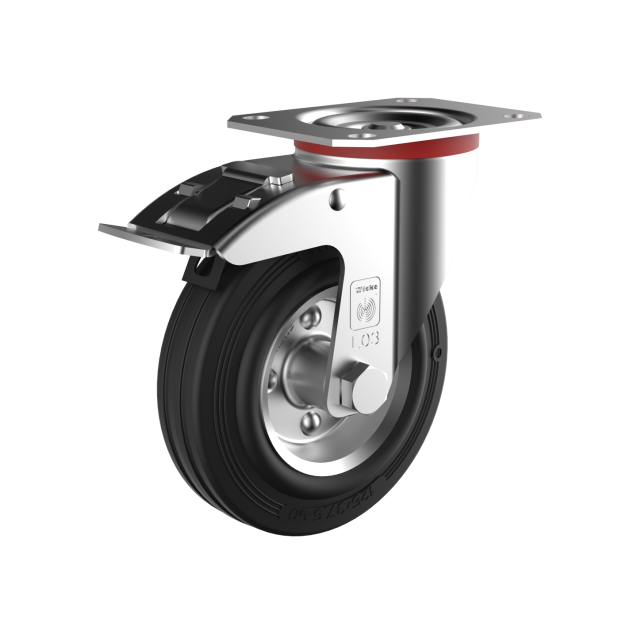

GB LL 03/125/38R-FSTF

  • Brands Wicke
  • SKU CODE: 190674
  • Availability: Out Of Stock

  • We don't have this item in stock but we can speak to the manufacturers and check availability. If parts are available we may be able to get them sent out directly.

P.O.A

Steel swivel forks with top plate. Swivel head with double ball race which is sealed to protect against dust and dirt. The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series L is suitable for manually moved loads up to 400 kg. Wheels of the series GB are made of a multipart riveted steel rim with a pressed on black standard rubber tyre with a shore hardness of 82 Shore A. The wheels are with roller bearings.
Product Details
Wheel Diameter (mm) 125
Tread Width (mm) 38
Load Capacity (kg) 100
Tyre Material Blue Wicke - ELASTIC rubber
Wheel Material Multipart riveted steel rim
Bearing Needle roller bearing
Overall Height (mm) 155
Diameter Mounting Hole (mm) 9
Front And Back Stop Frontstop
Offset 38
Base Plate Dimentions 105x80
Bolt Hole Spacing 80/76x60
Weight (kg) 1.015
Tyres Standard-Vollgui schwarz 82 Shore A
Type Swivel Castor Plate with brake (FSTF)
