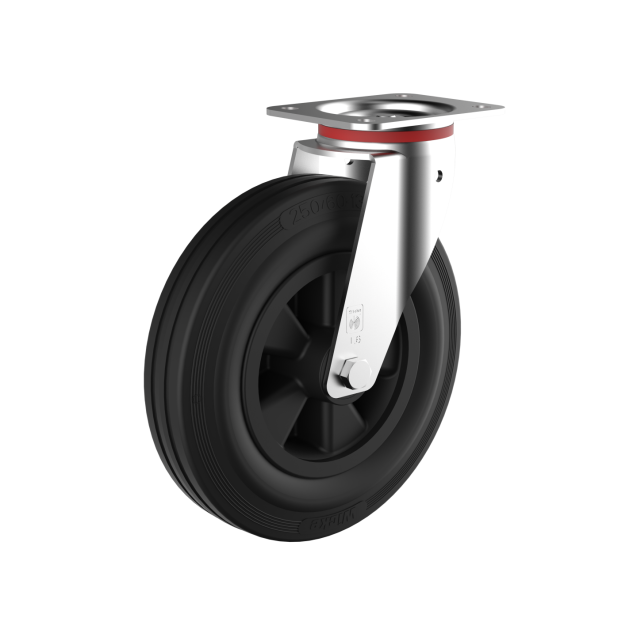

Steel swivel forks with top plate. Swivel head with double ball race which is sealed to protect against dust and dirt. The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series L is suitable for manually moved loads up to 400 kg. Wheels of the series GK are made of a black injected Polypropylene wheel center with a pressed on black standard rubber tyre with a shore hardness of 82 Shore A. The wheels are available with roller bearing.
| Product Details | |
| Wheel Diameter (mm) | 250 |
| Tread Width (mm) | 60 |
| Load Capacity (kg) | 295 |
| Wheel Material | Black injected Polypropylene |
| Bearing | Needle roller bearing |
| Overall Height (mm) | 290 |
| Diameter Mounting Hole (mm) | 11 |
| Offset | 66 |
| Base Plate Dimentions | 135x110 |
| Bolt Hole Spacing | 105x75/80 |
| Weight (kg) | 0.567 |
| Tyres | Standard-Vollgui schwarz 82 Shore A |
| Type | Swivel Castor Plate with brake (FSTF) |
Tags: 107953, GK LL 6/250/60R
