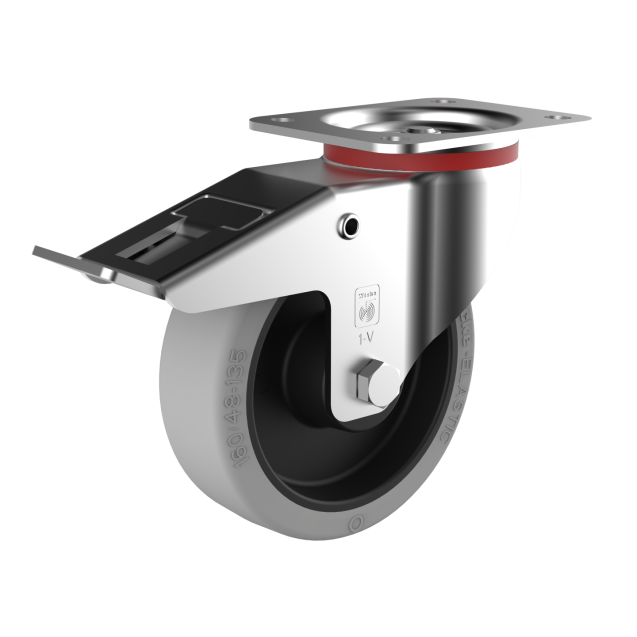

WN L 1/160/48R-V-FSTF

  • Brands Wicke
  • SKU CODE: 219932
  • Availability: Out Of Stock

  • We don't have this item in stock but we can speak to the manufacturers and check availability. If parts are available we may be able to get them sent out directly.

P.O.A

Steel swivel forks with top plate. Swivel head with double ball race which is sealed to protect against dust and dirt. The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series L is suitable for manually moved loads up to 400 kg. Wheels of the series WN are made of a one-piece Polyamide wheel center with a directly vulcanized high quality grey Wicke - ELASTIC® rubber tyre with 63 Shore A hardness. The wheels are available with roller bearing.
Product Details
Wheel Diameter (mm) 160
Tread Width (mm) 48
Load Capacity (kg) 400
Bearing Roller bearing
Overall Height (mm) 190
Bolt Hole Diameter (mm) 105x75/80
Diameter Mounting Hole (mm) 11
Front And Back Stop Frontstop
Offset 60
Tyres Wicke-Elastic® grau
Type Swivel Castor with brake
