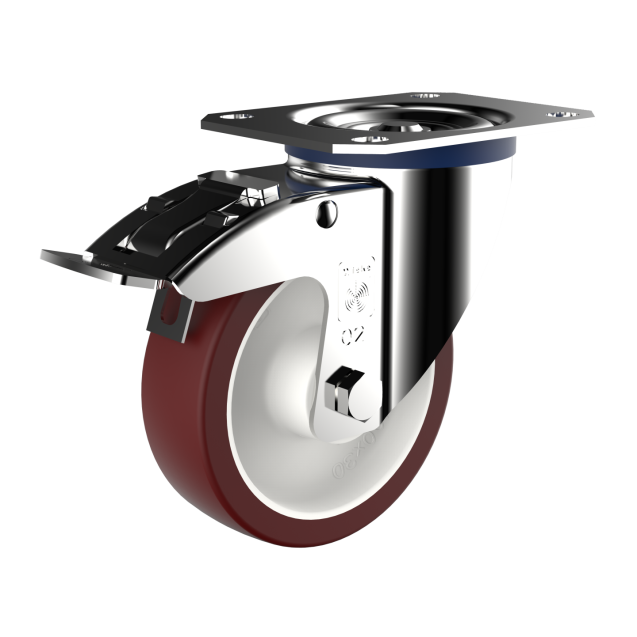

DS LI 02/100/30RX-FSTF

  • Brands Wicke
  • SKU CODE: 234281
  • Availability: Out Of Stock

  • We don't have this item in stock but we can speak to the manufacturers and check availability. If parts are available we may be able to get them sent out directly.

P.O.A

Stainless Steel Swivel Castors with top plate in material quality 1.4301. Swivel head with double ball race which is sealed to protect against dust and dirt. The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series LI is suitable for manually moved loads up to 400 kg. DS wheels have a pearl ruby red running surface made of thermoplastic Polyurethane (TPU) in 96 Shore A directly injected on a Polyamide (PA 6) wheel centre. The wheels are with stainless steel roller bearings.
Product Details
Wheel Diameter (mm) 100
Tread Width (mm) 30
Load Capacity (kg) 150
Bearing Roller bearing
Overall Height (mm) 125
Bolt Hole Diameter (mm) 80/76x60
Diameter Mounting Hole (mm) 9
Front And Back Stop Frontstop
Offset 38
Tyres INOX. TPU 96 Shore A
Type Swivel Castor with brake
