DS RI 1/150/45RX-FSTF

  • Brands Wicke
  • SKU CODE: 234274
  • Availability: Out Of Stock

  • We don't have this item in stock but we can speak to the manufacturers and check availability. If parts are available we may be able to get them sent out directly.

P.O.A

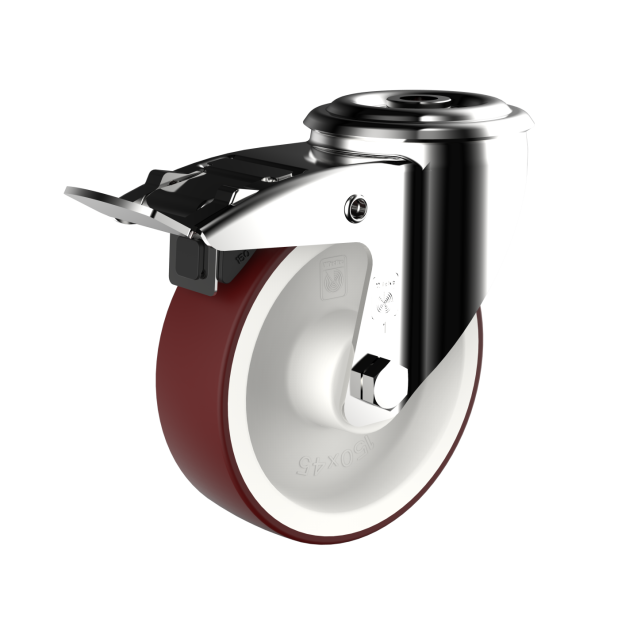

Stainless Steel Swivel Castors with single bolt hole in material quality 1.4301. Swivel head with double ball race. The top plate with single bolt hole is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series RI is suitable for manually moved loads up to 300 kg. DS wheels have a pearl ruby red running surface made of thermoplastic Polyurethane (TPU) in 96 Shore A directly injected on a Polyamide (PA 6) wheel centre. The wheels are with stainless steel roller bearings.
Product Details
Wheel Diameter (mm) 150
Tread Width (mm) 45
Load Capacity (kg) 300
Clamp Length (mm) 16.7
Bearing Roller bearing
Overall Height (mm) 185
Plate Diameter (mm) 100
Front And Back Stop Frontstop
Offset 52
Tyres INOX. TPU 96 Shore A
Type Swivel Castor with brake
