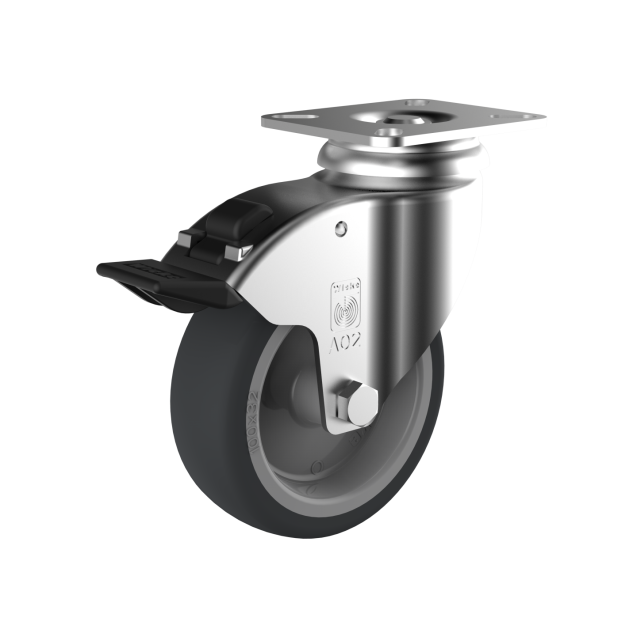

EP LAR 02/100/32G-FSTF

  • Brands Wicke
  • SKU CODE: 172112
  • Availability: Out Of Stock

  • We don't have this item in stock but we can speak to the manufacturers and check availability. If parts are available we may be able to get them sent out directly.

P.O.A

Steel swivel forks with top plate. Swivel head with double ball race. The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head. The series LAR is suitable for manually moved loads up to 100 kg. EP series wheels have a dark grey running surface in thermoplastic elastomer (TPE) in appr. 85 Shore A, which is directly injected onto a light grey Polypropylene rim. The wheels are available with plain bearing or with ball bearing.
Product Details
Wheel Diameter (mm) 100
Tread Width (mm) 32
Load Capacity (kg) 100
Tyre Material Dark grey running surface in thermoplastic elastomer (TPE)
Wheel Material Polypropylene
Bearing Plain Bearing
Overall Height (mm) 137
Bolt Hole Diameter (mm) 61.5/50x51.5/41.5
Diameter Mounting Hole (mm) 8.5
Front And Back Stop Frontstop
Offset 40
Base Plate Dimentions 77x67
Bolt Hole Spacing 61,5/50x51,5/41,5
Weight (kg) 0.63
Tyres TPE
Type Swivel Castor Plate with brake (FSTF)
